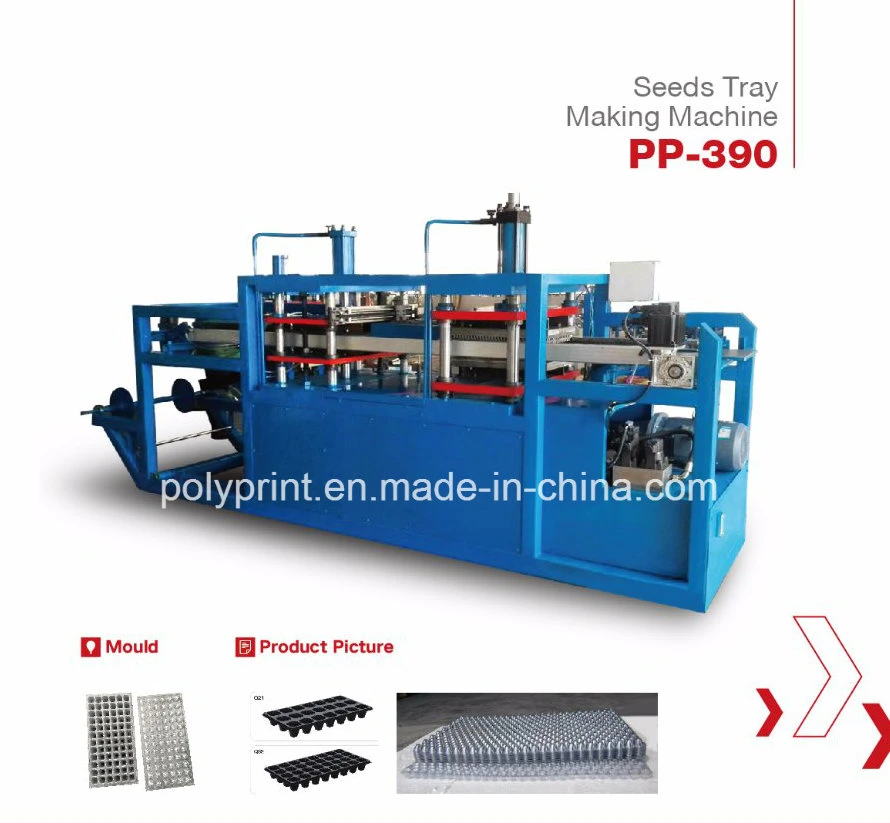

Products Description:
It is suitable to form HIPS, PS, PVC and PET plastic sheets etc., which can produce various of seeds tray, flower pot etc.
Design Features:
-Microprocessor-based control system (PLC).
-High speed forming air.
-Multi zone heating controller through solid state relay.
-High quality lapped spool valves for all control functions.
-Automatic unwind and rewind equipment for material and web.
-Heating plate is moving, mould is un-moving.
-Low air consumption.
-Low maintenance.
Technical Parameter:
Sample Picture:
Design Features:
-Microprocessor-based control system (PLC).
-High speed forming air.
-Multi zone heating controller through solid state relay.
-High quality lapped spool valves for all control functions.
-Automatic unwind and rewind equipment for material and web.
-Heating plate is moving, mould is un-moving.
-Low air consumption.
-Low maintenance.
Technical Parameter:
| 1. Forming Area | 390X600 mm |
| 2. Forming Depth | 100mm |
| 3. Sheet Width | 390 mm |
| 4. Sheet Thickness Range | 0.15-1.0mm |
| 5. Max. Sheet Roller Diameter | 710mm |
| 7. Water Consumption | 10Liters/min(15-25 C) |
| 8. Air Consumption | 1200 Liters/min |
| 9. Speed | 15-25 Cycles/min |
| 10. Power | Three-phase four-wire AC380v+-15v |
Sample Picture:
Our services:
- warranty:1year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
- Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
- Quotation: valid for 60days.
Packaging shipping:
Company information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.Contact information:
